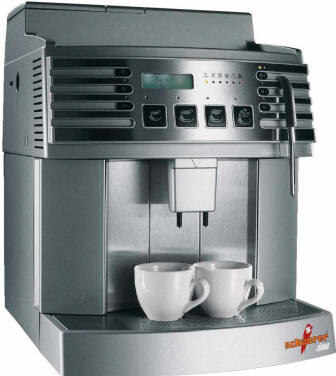

The Schaerer Siena-1 Super Automatic
Espresso Machine is packed with features at an affordable price:
Thanks to the new CPU-Platform, the Siena
offers limitless possibilities for distributors and coffee roasters,
taking full control of the programmability and limit access to certain
features.
Brochure (232 kB)
Quick Links:
-
Cleaning Supplies
-
Spare Parts |
| |
|
Technical
Specifications: |
|
Dimensions WxHxD: |
310 x 415 x 395 mm
(height without extension) |
|
Power: |
110 Volt or 220 Volt / 10A |
|
Weight: |
18kg |
|
Colour: |
Silver |
|
Max Cup Height: |
160 mm |
|
Water Plumbing Required: |
Optional |
|
Integrated Water Tank |
2.5 Litre |
|
Bean Hopper: |
250 g |
|
Steam Wand Function: |
YES / Simultaneous |
|
Operator Panel |
|
 |
Standard Button Assignment:
- Espresso
- Espresso (long)
- Coffee
- Coffee (long)
- Coffee Pot
If you want any other configuration,
please let us know. |
 |
|
|
Variations |
|
The Siena-1 can be ordered in a variety of Versions:
|
|
|
Powerful new
CPU-Platform |
| |
|
-
On-Screen Programming
|
- Cup Size
- Strength
- Water Temperature
- Pre-Brew
- Product Counters
- Descaling, Auto-Off, Rinse, Cleaning
|
| |
|
|
 |
Connect to a PC via RS232 for extended
programming (only for distributors)
- Product Button Assignment
- Max Coffee Boiler Temperature
- Max Steam Boiler Temperature
- Tamping Pressure
- Pre-Brew Delay / Amount
- Temperature Compensation
- Accounting System / Prices
|
| |
|
 |
Commercial Components Used: |
 |
|
|
|
| |
 |
|
| |
Automatic Brew Group |
| |
The Siena incorporates the same brew unit
like the larger Commercial Models
Ambiente and
Celebration
|
| |
The brew chamber capacity is an
incredible 18 grams allowing the brew group to brew 2 cups in a single
brewing cycle. |
| |
 |
|
| |
Adjustable Grinder |
| |
Just like on the Ambiente and
the Celebration, the high precision grinder ensures a consistent grind. |
| |
| |
| |
The adjustable coffee grinder is
made of hardened alloy and ensures guaranteed performance throughout the
life of the Siena. The low revolution grinder will not only limit the
noise emission but also limit the production of dust particles.
|
 |
Siena-1 Standard: |
 |
|
|
|
|
 |
|
| |
Simultanous Brewing
and Steaming |
| |
The Siena is the only machine
in its price class that can dispense steam and espresso simultaneously.
The Siena Solution is truly the most advanced technology. |
| |
| |
| |
| |
|
|
|
 |
|
| |
Double Products |
| |
Thanks to the 16g brew group, 2
products can be dispensed in a single brewing cycle. Just push the
double button followed by any product button (except Coffee Pot) and the Siena will
automatically dispense 2 products. |
| |
| |
|
 |
|
|
|
| |
Cup Warmer |
| |
Place the cups on the cup
warmer platform to ensure the cups are warm whenever needed. |
| |
| |
 |
Siena-1 Options: |
 |
|
|
|
|
 |
|
| |
Coin or Token
Acceptor |
| |
The coin or token acceptor is ideal for self service
applications.
|
| |
| |
|
 |
|
|
|
| |
DeLuxe Bean Hopper
(Optional) |
| |
The oval transparent bean
hopper extension can be ordered as an
Option.
It adds another 250g capacity to a total of 454g (1lb)
Increases the Siena height to 510mm |
| |
| |
| |
|
|
|
 |
|
| |
Base Extension &
Plumbing |
| |
The Siena can be
plumbed in and hooked up to a drain hose. |
| |
|
| The Siena Product line is the only machine enabling simultaneous
brewing and steaming thanks to the independent real stainless steel
boilers. Customized self service panels are available to cover the programming
buttons and display your POS graphics and Logo. |
| The Siena-1 and Siena-2 are
perfect for mobile applications: |
 |
- Office Coffee and Service
- Corporate Lounge
- Hotel Lounges
- C-Store (Convenience Stores)
- Casinos
- Staff Rooms
- Car Dealerships
- Complimentary Coffee Corner
- Coffee and Espresso Kiosk
Quick Links:
-
Cleaning Supplies
Please ask for the
external water pump kit
if the Siena requires
mobility and draw water from a remote water tank. |
|
